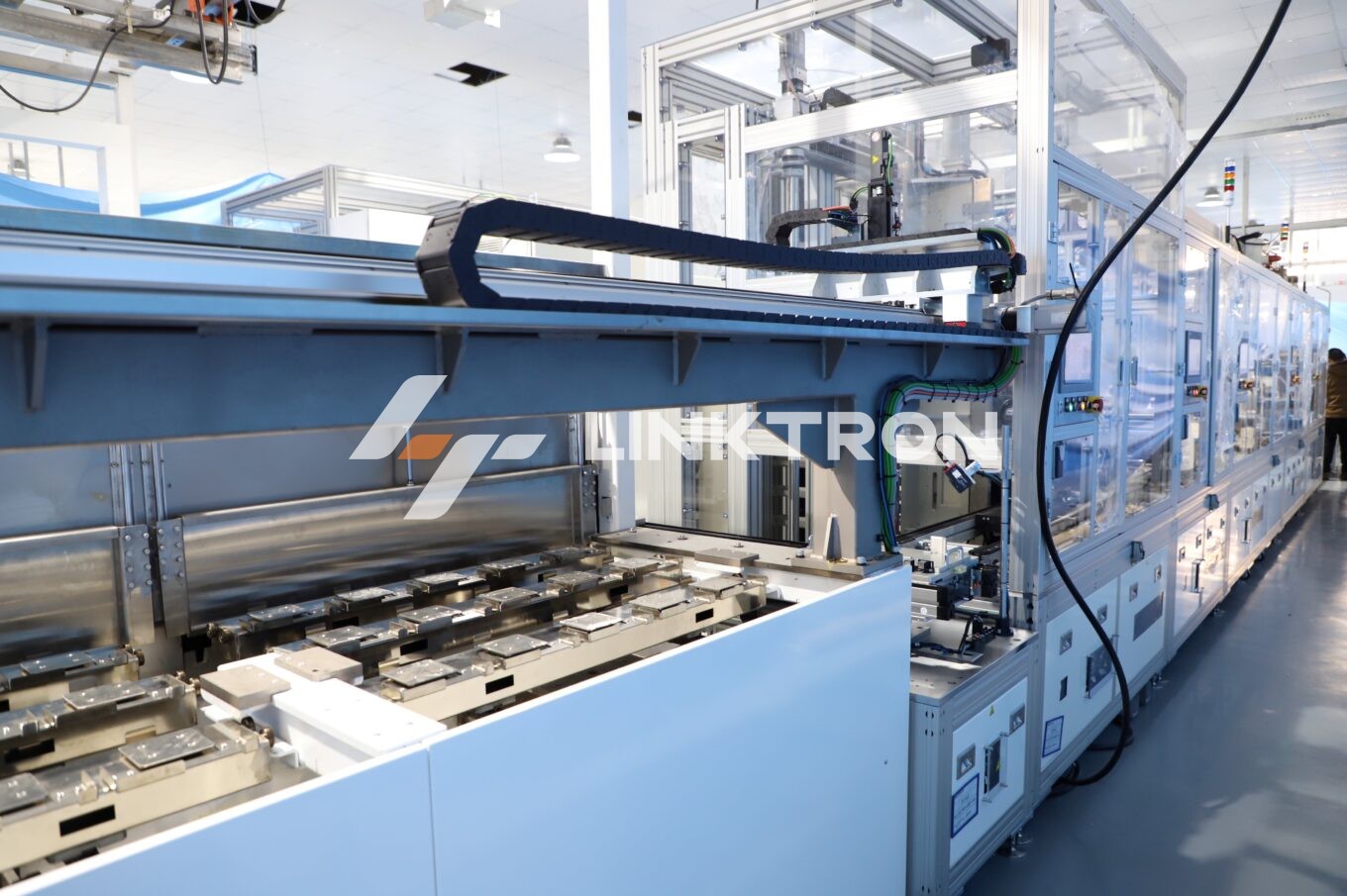

Wire Controlled Brake Controller Automatic Assembly & Testing Line

Wire Controlled Brake Controller Automatic Assembly & Testing Line

Wire controlled brake controller is also known as integrated brake control system (IBC2, Integrated Brake Control Unit）.This system integrates various components of traditional braking systems into a compact unit, including key functions such as ABS anti-lock braking system, ESC electronic vehicle stability system, and electronic parking. In addition, the design of IBC2 enables it to seamlessly integrate with mainstream driver assistance systems (ADAS), providing strong support for the development of autonomous driving technology for electrical vehicles.

We provide a comprehensive integrated brake control system assembly and testing solution tailored to the specific needs of our customers, aimed at ensuring efficient operation and outstanding performance of the system.

Key Processes

Ferrite Plasma cleaning& assembling

Ground spring & Coil spring assembling

AOI

PCBA assembling &press-fit & inspection

Gasket assembling & inspection

Dispensing sealant and heat dissipation adhesive

Flip and press fit

High temperature-curing

Leakage testing

FFT

Connect check

Laser marking

Auto unloading of finished products

Product Features

Only two operators are needed to achieve fully automated operation for the entire line

The production line is compatible with multiple products, supporting quick changeover of hardware and software. Quick-change fixtures have foolproof design.

The front and back of the curing oven adopt a segmented design to improve the efficiency of the curing oven during product changeover.
